支持 extractCommon & extractVendor #2

liaoyu · 2021-04-20T11:17:25Z

参考：
https://webpack.js.org/plugins/split-chunks-plugin/
https://webpack.js.org/concepts/entry-points/#separate-app-and-vendor-entries

extractVendor
- BREAKING CHANGE: extractVendor 不再支持指定 entry name，请指定固定依赖的包名数组，例如 ["react", "react-dom"] （改动原因是 webpack 5 不再支持通过指定 entry 来抽取公共依赖）
- 行为是将所指定的依赖在 node_modules 的包都打包进 vendor，指定 true 时则抽取所有 node_modules 下的依赖包
extractCommon
- 2 个 entry 以上时抽取公共依赖

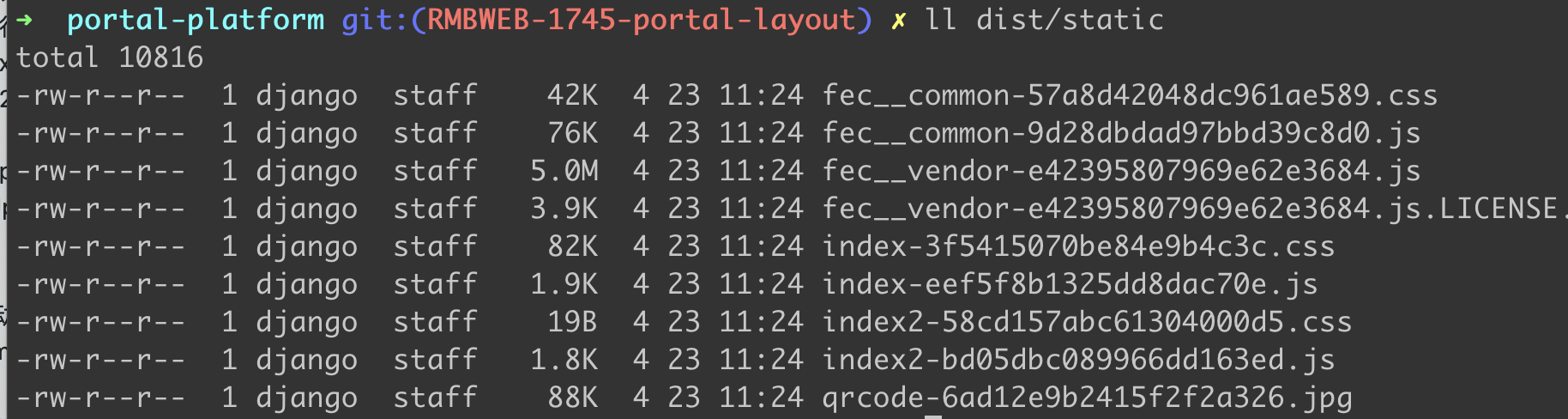

以 portal-platform 为例，在不改动配置时输出如下：

手动增加一个 entry 共同开启：

nighca · 2021-04-21T02:19:30Z

src/webpack/transform.ts

+  config: Configuration, cacheGroups: SplitChunksCacheGroups
+): Configuration {
+  return produce(config, newConfig => {
+    newConfig.optimization = newConfig.optimization || {}


NIP: 最近发现可以写成

newConfig.optimization ||= {}

或者

newConfig.optimization ??= {}

这俩写法都已经 stage 4 了好像，我们用的 TS 版本应该也支持的

done 🐮 🍺

nighca · 2021-04-21T02:20:38Z

src/webpack/transform.ts

@@ -458,3 +458,49 @@ function makeBabelLoaderOptions(
    nextOptions.sourceType = nextOptions.sourceType || 'unambiguous'
  })
 }
+
+export interface SplitChunksCacheGroup {


这个是从哪里拷的吗？webpack 本身没有定义或者暴露这个类型？

这个是从 webpack 里拷贝出来，它没有将这些类型导出

nighca · 2021-04-21T02:27:12Z

src/webpack/index.ts

  config = addTransforms(config, buildConfig)

  const htmlPlugins = Object.entries(buildConfig.pages).map(([ name, { template, entries } ]) => {
    return new HtmlPlugin({
      template: abs(template),
      filename: getPageFilename(name),
-      chunks: entries
+      chunks: [...baseChunks, ...entries],
+      chunksSortMode: 'manual'


指定 manual 有什么说法吗？

测试发现不指定顺序有可能 vendor.js 会在 entry.js 后面

nighca · 2021-04-21T02:30:17Z

src/webpack/index.ts

+
+    if (extractVendor) {
+      if (typeof extractVendor === 'string') {
+        logger.warn('BREAKING CHANGE: The type of extractVendor no longer a string, please use an array, like ["react", "react-dom"]')


NIP: 这个像是在暗示，原本的 'vendor' 应该改成 ['vendor']..

这边并不是一个简单的 string -> string[] 的变化，而是调整了需要指定的信息，建议这边直接让他看最新的 extractVendor 的文档就好

nighca · 2021-04-21T02:37:06Z

src/webpack/index.ts

+        logger.warn('BREAKING CHANGE: The type of extractVendor no longer a string, please use an array, like ["react", "react-dom"]')
+      } else {
+        baseChunks.push(chunks.vendor)
+        // extractVendor 传空数组时，默认将依赖的 node_modules 都打包进 vendor


['react'] -> 抽取 react
['react', 'react-dom'] -> 抽取 react & react-dom
[] -> 抽取所有第三方依赖

感觉不太符合直觉？

如果确实有抽取所有第三方依赖的需求，我觉得 extractVendor: true 比 extractVendor: [] 更符合直觉一点？

done，增加了 boolean 的类型，改成 extractVendor 传空数组不进行 vendor 抽取

nighca · 2021-04-21T03:08:25Z

src/webpack/index.ts

+      } else {
+        baseChunks.push(chunks.vendor)
+        // extractVendor 传空数组时，默认将依赖的 node_modules 都打包进 vendor
+        const vendorModules = extractVendor.length > 0 ? `(${extractVendor.join('|')})[\\\\/]` : ''


这边的内容会被拿去构造正则，值需不需要做正则的 escape？即，第三方依赖的包名里有没有可能有正则的特殊字符？

NIP: 正则如果容易出错的话，也可以考虑用 test function

改成 test function 来处理了

nighca · 2021-04-21T03:24:14Z

src/webpack/index.ts

@@ -63,13 +64,50 @@ export async function getConfig(): Promise<Configuration> {
    }
  }

+  const baseChunks: string[] = []
+
+  if (getEnv() === Env.Prod) {


getConfig 函数有点长了，这一块是相对独立的一块内容，建议拆到旁边单独的函数里，这边调用之？

huangbinjie · 2021-04-21T05:47:14Z

src/webpack/index.ts

+
+    if (extractVendor) {
+      if (typeof extractVendor === 'string') {
+        logger.warn('BREAKING CHANGE: extractVendor 不再支持指定 entry name，请指定固定依赖的包名数组，例如 ["react", "react-dom"]')


发 2.0 还要温和吗？

不是直接不处理或者报错吗。。
然后有个 immigration 的东西告诉我们怎么从 1 迁移到 2

哦原来你说的真的是”温和“..

我觉得报错也是可以的

然后有个 immigration 的东西告诉我们怎么从 1 迁移到 2

这个就是我提到的，让使用方来看最新文档就好

这里改成抛 Error 并提示查看帮助文档了

nighca · 2021-04-21T06:51:50Z

对了，有几个点测试的时候需要稍微注意下：

vendor & common 对应的 css，是不是像默认 css 一样，是在比 Javascript 更早的时候加载的（插在 <head> 里）
依赖内容不变，修改 src 内容，构建后生成的 vendor chunk，其内容及文件名（hash）应该不变
新增或修改别的依赖内容，但不改变 extractVendor 对应的依赖，构建后生成的 vendor chunk，其内容及文件名（hash）应该不变

nighca · 2021-04-22T12:40:01Z

src/webpack/transform.ts

+          const resource = module.resource
+          if (!resource) return false
+
+          if (typeof extractVendor === 'boolean') {


extractVendor === false 的话也走这个分支吗？

不会的，前面还有一个 if (extractVendor) {} 做前置判断才会走到这里边

nighca · 2021-04-22T12:40:59Z

src/webpack/transform.ts

+          return extractVendor.findIndex(packageName => {
+            return resource.includes(path.join('node_modules', packageName))
+          }) !== -1


NIP:

Suggested change

return extractVendor.findIndex(packageName => {

return resource.includes(path.join('node_modules', packageName))

}) !== -1

return extractVendor.some(packageName => {

return resource.includes(path.join('node_modules', packageName))

})

nighca · 2021-04-22T12:44:12Z

src/webpack/transform.ts

+          }
+
+          return extractVendor.findIndex(packageName => {
+            return resource.includes(path.join('node_modules', packageName))


考虑取名 xxx_node_modules 的自定义目录，node_modules 前面也带个杠的话严谨一点？上边的

return resource.includes('node_modules')

同理

大佬严谨，我前后都加一下

liaoyu · 2021-04-23T03:32:45Z

对了，有几个点测试的时候需要稍微注意下：

vendor & common 对应的 css，是不是像默认 css 一样，是在比 Javascript 更早的时候加载的（插在 <head> 里）

依赖内容不变，修改 src 内容，构建后生成的 vendor chunk，其内容及文件名（hash）应该不变

新增或修改别的依赖内容，但不改变 extractVendor 对应的依赖，构建后生成的 vendor chunk，其内容及文件名（hash）应该不变

这 3 个场景已经验证符合预期
